|Ingenico Axium RX5000
Ingenico. Products. RX 5000
RX5000
Android 11 Smart Retail PIN Pad. Built for Fast Multilane Checkout

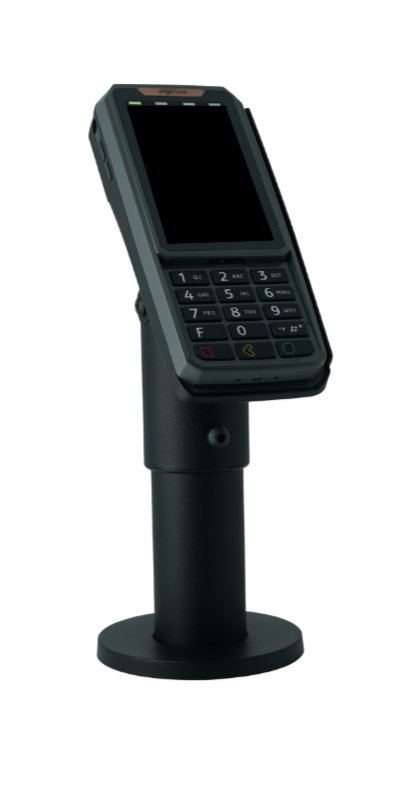

The Ingenico AXIUM RX5000 is a compact Android 11 smart PIN pad engineered for high-volume attended retail lanes, countertop checkouts, and semi-attended self-service kiosks. Featuring a 4-inch glass touchscreen above a backlit 15-key mechanical keypad, an integrated rear camera for QR-code scanning, and a high-speed Cortex A55 processor, the RX5000 runs business apps and certified payment acceptance simultaneously. Its single-cable IDMI interface and active cable-tamper detection deliver seamless POS integration with enterprise-grade PCI PTS v6 security.
Firemane supplies the Ingenico AXIUM RX5000 in bulk wholesale quantities for ISOs, merchant acquirers, POS software developers, and enterprise retailers. We provide factory-direct hardware fulfillment & certified PCI key injection (KIF).
Ready to upgrade your payments?
Talk with out team to discuss your specific requirement. We’ll get back to you within one business day.
Protection by design
High-Performance Multilane Retail & Kiosk
PCI PTS v6 & Anti-Tamper Security
Certified for attended multilane retail and semi-attended kiosks, featuring active cable removal detection, anti-skimming sensors, and PCI privacy shields.
End-to-End P2PE Encryption
Protects cardholder data directly at the PIN pad core with advanced key management, Point-to-Point Encryption (P2PE), and remote key injection (KIF).
Android 11 Enterprise Platform
Powered by Android 11 with Cortex A55 processing to run merchant business apps, loyalty programs, and digital surveys seamlessly alongside payments.
Omnichannel & Contactless Acceptance
Accepts EMV chip, bi-directional magstripe, and NFC contactless (Apple Pay/Google Pay), plus rear-camera scanning for 1D/2D and QR payments.
Designed for what matters
Everything you need for retail lanes.
Four hardware advantages the AXIUM RX5000 delivers for smart, accessible multilane and kiosk commerce.
-
Android 11 Retail Power
A high-resolution 4-inch glass touchscreen paired with a Cortex A55 quad-core processor keeps POS prompts, loyalty apps, and digital interactions crystal clear.
-
Full EMV, NFC & QR Acceptance
Accepts EMV chip, bi-directional magstripe, and contactless cards/wallets, plus a rear camera dedicated to fast 1D/2D and QR-code payment scanning.
-
Single-Cable IDMI & Kiosk Integration
A single IDMI port delivers Power, Ethernet, USB, and RS232 connectivity with active cable-removal tamper detection for checkout lanes and self-service kiosks.
-
Enterprise Connectivity & Audio Guidance
Ethernet 10/100, dual-band Wi-Fi, and Bluetooth 5.0 pair with a physical 15-key backlit PIN pad and integrated speaker for complete accessibility.
Specifications
The technical detail.
AXIUM RX5000 covers all payment methods on the Android smart POS platform
Processor
Cortex Quad-core A55 1.8GHz · dedicated security core SC300 192MHz
Operating system
Android 11 Security OS
Memory
8GB Flash + 1GB RAM standard, or 16GB Flash + 2GB RAM · MicroSD card slot
Display
4 inch 480 x 800 colour capacitive touchscreen with glass lens · 15 key backlit mechanical keypad
Connectivity
Ethernet 10/100 · dual-band Wi-Fi 802.11 a/b/g/n · Bluetooth 5.0 BLE · single-port IDMI interface
Power
Direct DC power supply via IDMI or ECR · optional Power over Ethernet (POE Box)
Security
PCI PTS v6 · proactive overlay and skimmer detection · active cable removal detection · Kensington lock
Certification
EMV Contactless L1 3.1 · ISO/IEC 14443 Type A/B · FeliCa · CE, FCC, RoHS
Card reader
Magstripe ISO 1/2/3 bi-directional · EMV smart card ISO 7816 · NFC contactless
SAM / SIM slots
1 SAM slot (Secure Access Module)
Cameras & capture
Rear 0.3MP fixed-focus camera optimised for fast 1D/2D barcode and QR code payments
Scale Your POS Hardware Supply
At Firemane, we partner with sub distributors, POS resellers, ISOs, and merchant service providers to streamline global hardware operations. We manage the complete POS terminal lifecycle so enterprise grade hardware arrives deployment ready, on time, every time.
Authentic Hardware Stock
Authentic warrantied POS hardware held in global stock for fast international shipping.
Deployment Ready Terminals
Key injection, custom software configuration, and full terminal testing before dispatch.
Bulk Wholesale Sourcing
Scalable wholesale POS supply built for ISOs, acquirers, resellers, and enterprise rollouts worldwide.
Rapid Wholesale Quotes
Share your volume requirements and our sales team confirms competitive pricing and stock availability fast.
