Ingenico. Products. Lane 3600

Lane 3600

The Ingenico Lane 3600 is a compact, high speed retail payment PIN pad purpose built for multi lane environments where counter space is limited but transaction speed and security are critical. Powered by Ingenico’s secure Telium TETRA OS and certified to global PCI PTS 6.x standards, the Lane 3600 delivers the full power of the Lane series in a space saving, rugged form factor engineered for high volume ECR (Electronic Cash Register) and fixed POS integration.

Designed for rapid checkout flow across supermarkets, convenience stores, and enterprise retail chains, the Lane 3600 features an intuitive color display, a tactile ergonomic keypad, and an optimized contactless target. It accepts all modern payment methods: including EMV chip and PIN, magnetic stripe, and NFC tap to pay (Apple Pay, Google Pay), ensuring frictionless customer interactions during peak hours.

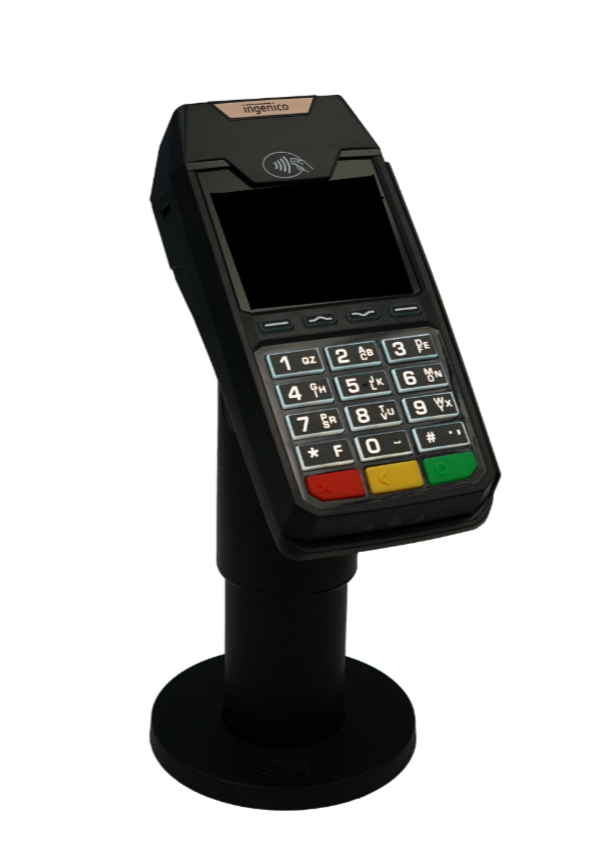

Ingenico Lane3600 POS payment terminal device with a contactless payment terminal

Compact, High-Speed Payment Hardware for Multi-Lane Retail & Enterprise POS Deployments

Ready to upgrade your payments?

Talk with our team to discuss your specific requirements. We’ll get back to you within one business day.

Enquire now
Download datasheet
Protection by design
Engineered for high-speed retail performance.
PCI PTS v6
Certified for attended and semi-attended checkout use.
Telium TETRA OS
TETRA vault design for the highest physical data protection.
Colour display
2.8" QVGA glass lens, with optional capacitive touchscreen.
Full acceptance
EMV chip, magstripe and NFC contactless in one.
Designed for what matters
Everything you need.
Four things the Lane 3600 gets right for a more efficient checkout.
01
Secure PIN entry
A larger, tactile keypad paired with a bright 2.4″ colour display for fast, confident PIN entry.
02
Chip & contactless
Accepts EMV chip, magnetic stripe and NFC contactless payments in a single tap.
03
Integrated printing
A built-in thermal printer engineered to speed up receipt generation directly at the counter.
04
Versatile connectivity
Ethernet by default, with optional 4G/Wi-Fi to fit any network infrastructure.
Specifications
The technical detail.
Lane 3600 covers all payment methods with a focus on contactless validation
Processor
Cortex A7
Operating system
Telium TETRA
Memory
256 MB Flash + 256 MB RAM (up to 512 MB RAM)
Display
2.8" colour QVGA glass lens · optional touchscreen
Connectivity
Ethernet 10/100 · optional Wi-Fi & Bluetooth
Power
Powered USB / RS232 / Ethernet · 12V
Security
PCI PTS v6 · TETRA vault · anti-theft
Certification
EMV L1 · contactless EMV L1 3.0 · scheme approved
Card reader
Magstripe · smart card · contactless
SAM slots
1 SAM slot
